Slide 1

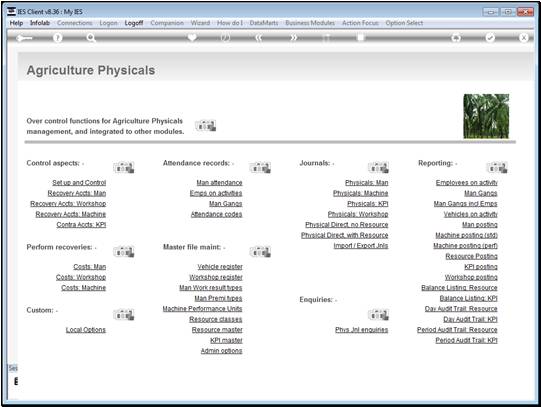

Slide notes: Man Work Result types are used with Man Journals, and we can create all the types we want to use.

Slide 2

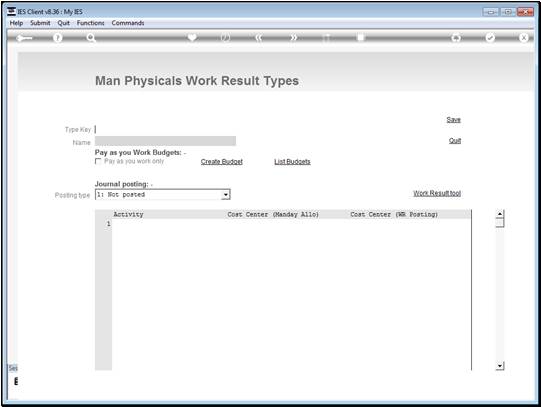

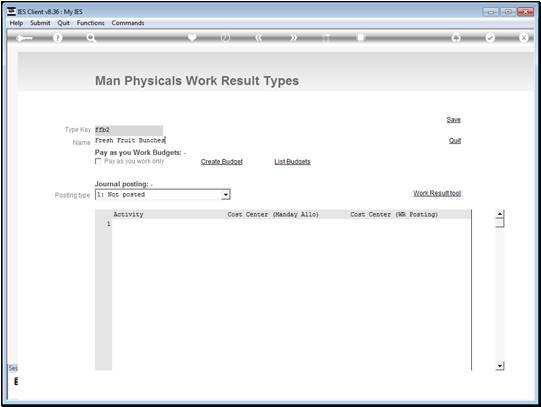

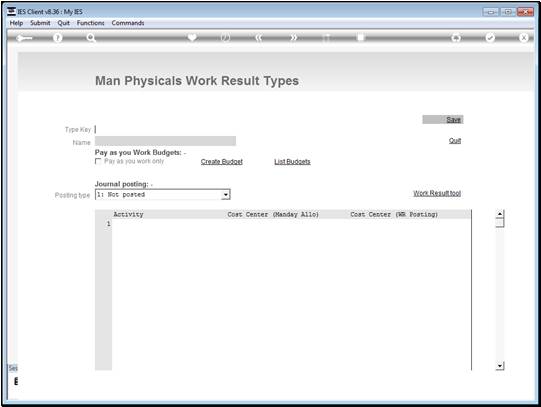

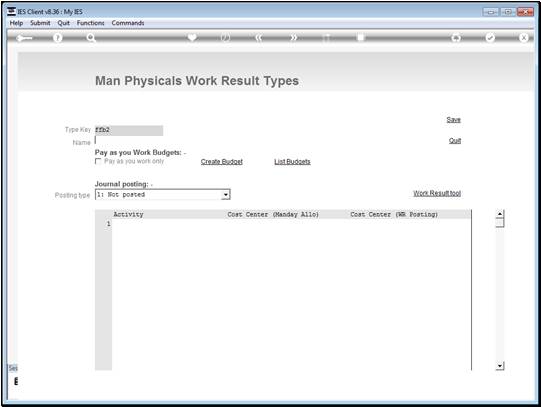

Slide notes: We define each Work Result type with a short key, and then give it the appropriate name.

Slide 3

Slide notes:

Slide 4

Slide notes:

Slide 5

Slide notes:

Slide 6

Slide notes: This is the minimum, or all that is required in order to use a Work Result type on the Man journals.

Slide 7

Slide notes:

Slide 8

Slide notes:

Slide 9

Slide notes: However, we can use the Work Result type to do more than just capture it on a Man Journal. For example, we can flag it as 'Pay as you work', also called Borongan, in which case the Work Result may only be used with Borongan Employees.

Slide 10

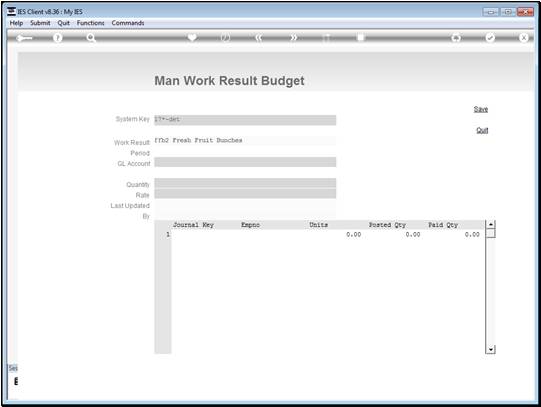

Slide notes: For Borongan, or Pay as you work, the Employee is paid purely on the Work Result quantity, and for this we need to create the allowed Budget.

Slide 11

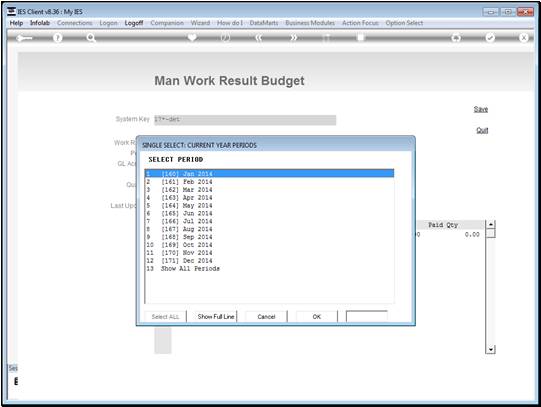

Slide notes: The Budget is always created as a Quantity allowed for all Borongan work for a Period and GL Allocation.

Slide 12

Slide notes:

Slide 13

Slide notes:

Slide 14

Slide notes:

Slide 15

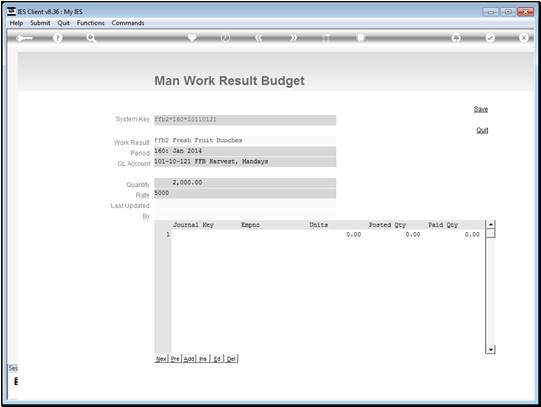

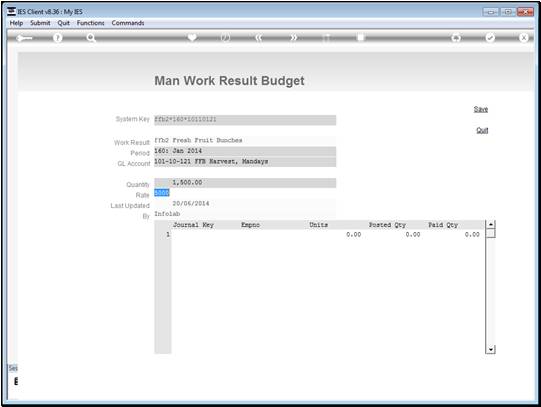

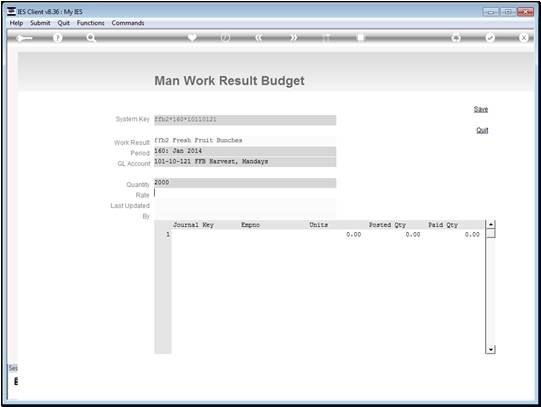

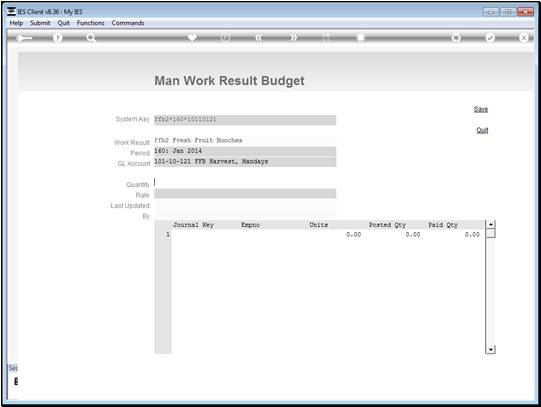

Slide notes: So we specify the total quantity allowed for all Borongan work on this Work Result type, for the selected Period and GL Account.

Slide 16

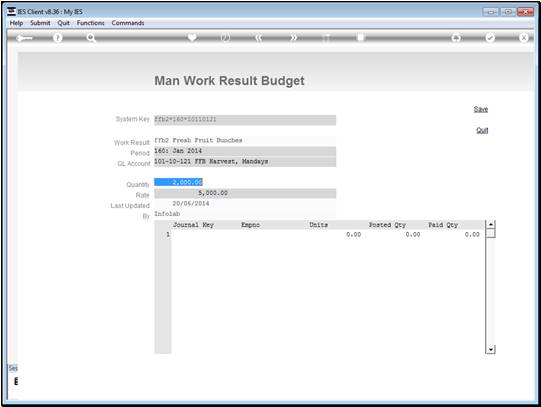

Slide notes: We also specify the rate at which a unit will be paid.

Slide 17

Slide notes:

Slide 18

Slide notes:

Slide 19

Slide notes: We can create many Budgets for the same Period but different GL Allocations and we can also use the 'Create' function to edit or change current Budgets that have already been done.

Slide 20

Slide notes:

Slide 21

Slide notes:

Slide 22

Slide notes:

Slide 23

Slide notes:

Slide 24

Slide notes:

Slide 25

Slide notes:

Slide 26

Slide notes:

Slide 27

Slide notes:

Slide 28

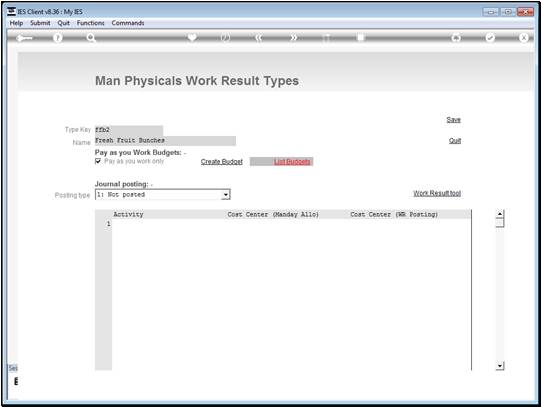

Slide notes: The 'List Budgets' function may be used for a Report on selected Budgets.

Slide 29

Slide notes:

Slide 30

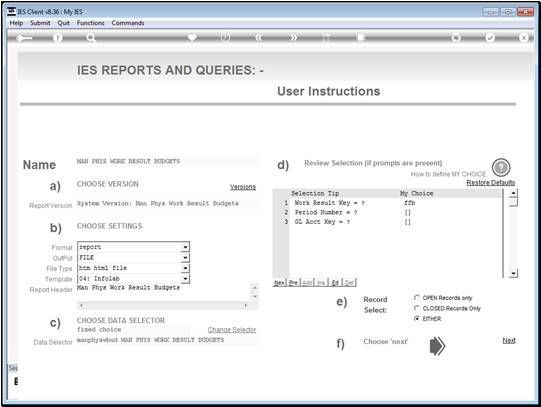

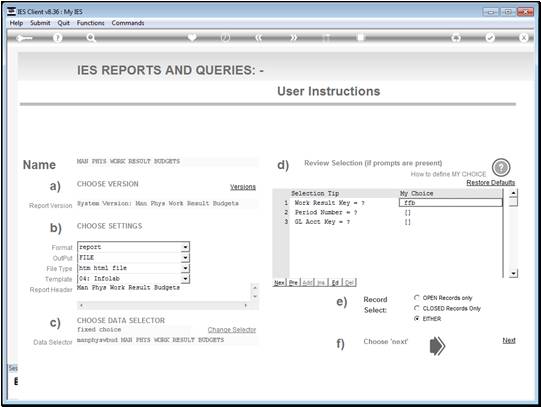

Slide notes: We may specify a specific Work Result type to list, or Period or GL allocation. In this example we will list Budgets that exist for 'ffb' type of work.

Slide 31

Slide notes:

Slide 32

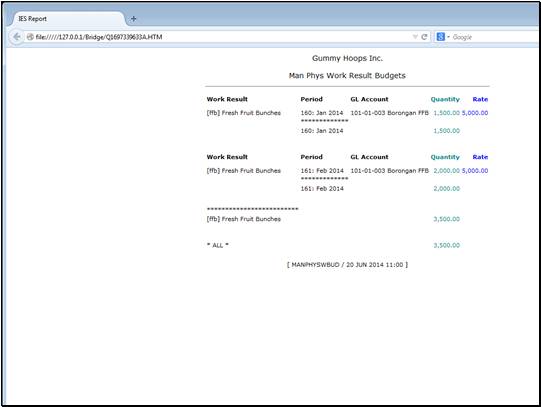

Slide notes: And this is an example of the Report.

Slide 33

Slide notes:

Slide 34

Slide notes:

Slide 35

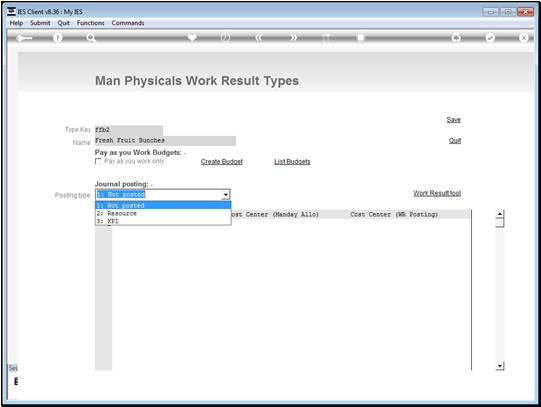

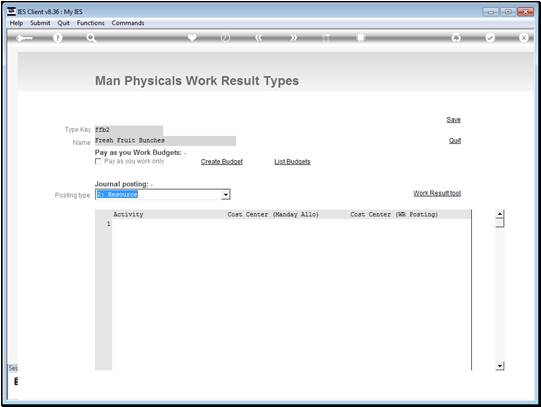

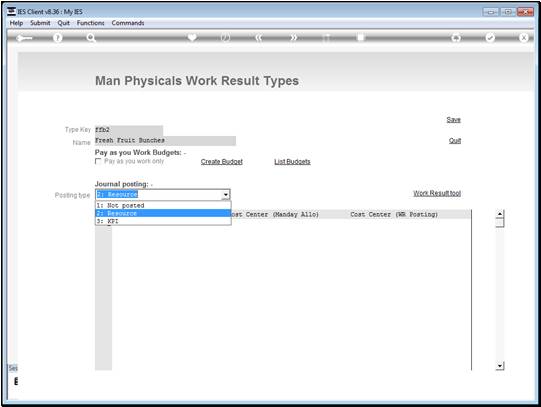

Slide notes: There is more that we can do with a Work Result when it is captured. For some Work Result types, we may only want to capture, for others we may want to auto post a Resource posting, or even a KPI posting.

Slide 36

Slide notes:

Slide 37

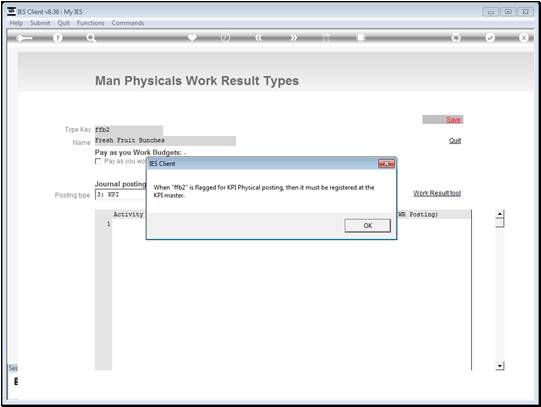

Slide notes: If we flag a Work Result type for auto Resource posting, then the Work Result type must also be registered as a Resource on the Resources master, and likewise for KPI if we flag it for KPI posting.

Slide 38

Slide notes:

Slide 39

Slide notes:

Slide 40

Slide notes:

Slide 41

Slide notes:

Slide 42

Slide notes:

Slide 43

Slide notes:

Slide 44

Slide notes:

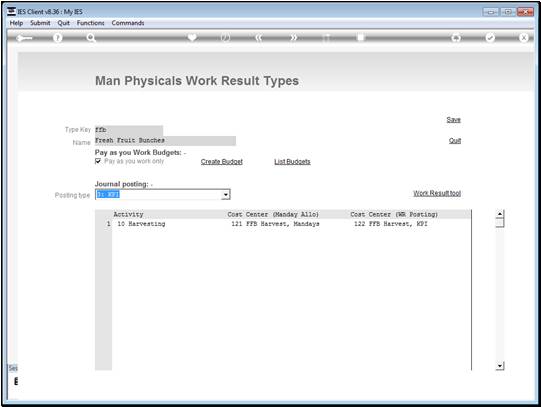

Slide 45

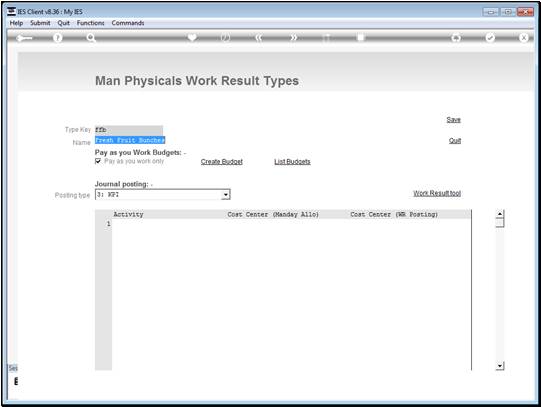

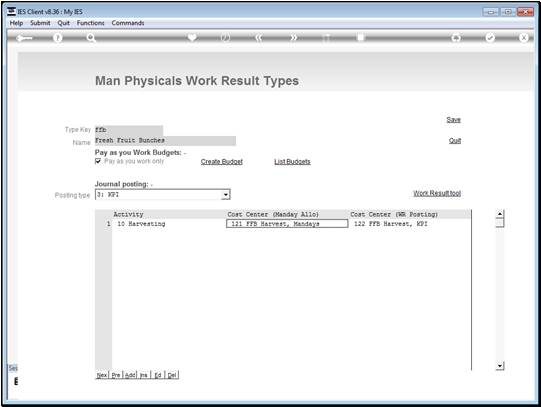

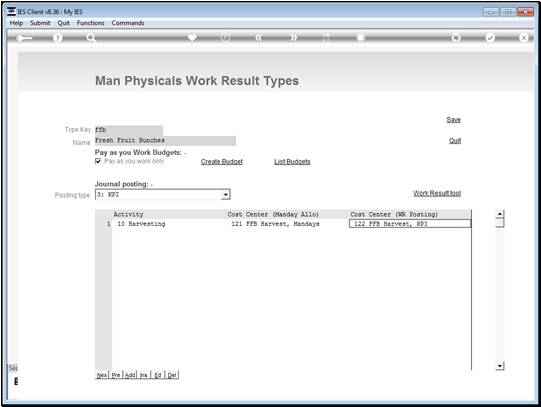

Slide notes: Here we have another example, where we use type 'ffb'. It is currently flagged for 'Pay as you Work' only, and also flagged for auto KPI posting. That means when this Work Result type appears on a Man Journal line, then the system posts the Manday to the Main allocation, and automatically also posts a KPI value which is the same as the Work Result total, to the 'WR Posting' allocation. The Operator will never have to capture the WR Allocation, because we must pre-program it on the Work Result type.

Slide 46

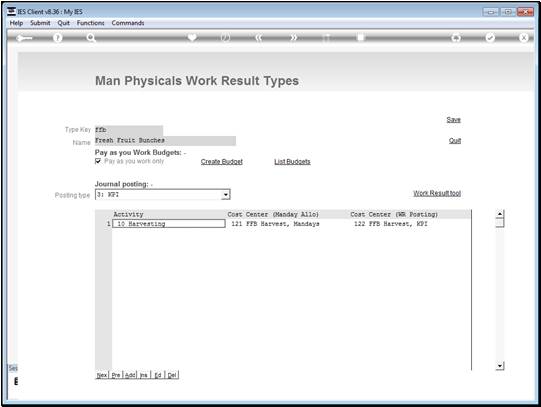

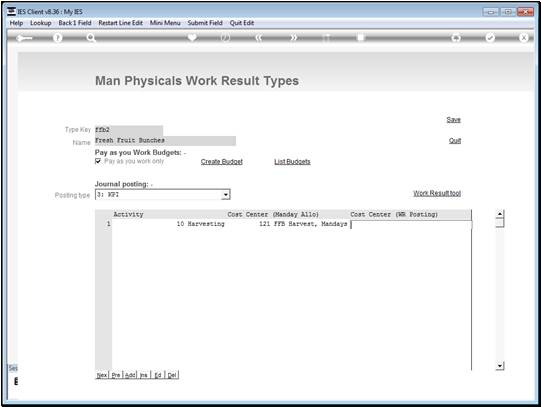

Slide notes: How do we do this? We list all the Activities where the Work Result type will be valid, and then we will list Cost Centers with this Activity for which the main GL Allocation will be valid. Then we indicate the new Cost Center for the Work Result posting of Resource or KPI.

Slide 47

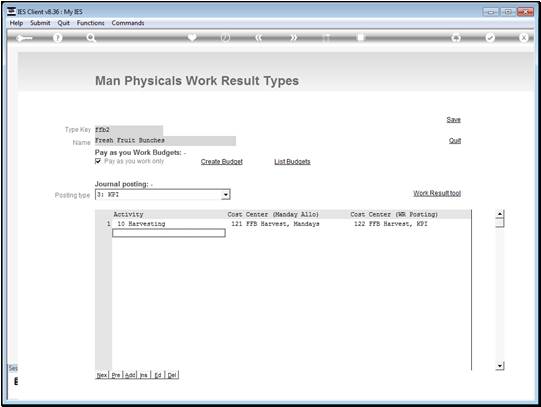

Slide notes: For Resource, this has to be a different Cost Center, because the Manday is already being posted as a Resource on the main GL allocation, and therefore another Resource posting for the Work Result total must be to a different Account. For a KPI posting the Account can be the same or a different one.

Slide 48

Slide notes: The Work Result tool will show us how to test our GL Chart setup for the Work Result, and even to better understand how this works.

Slide 49

Slide notes:

Slide 50

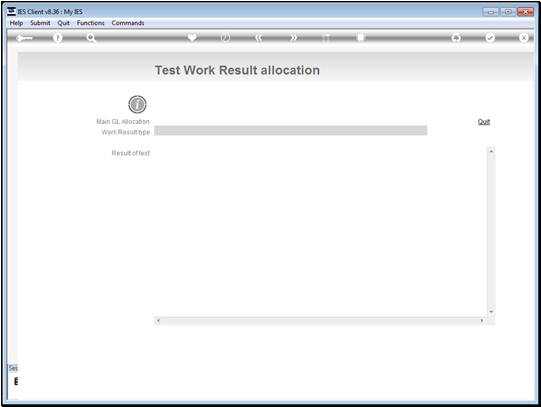

Slide notes: Just specify a typical GL Account number that may be used as the main Allocation for a Man Journal line with this Work Result type, and then specify the Work Result type. The system will show us what will happen.

Slide 51

Slide notes:

Slide 52

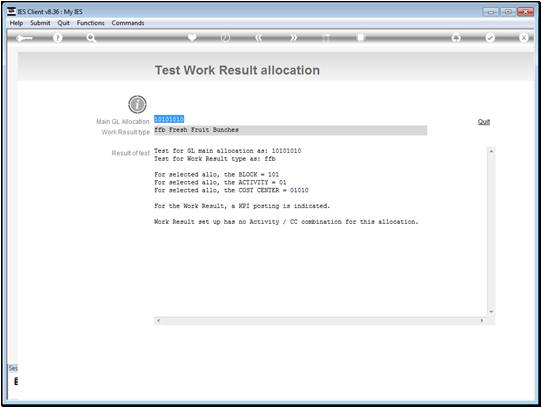

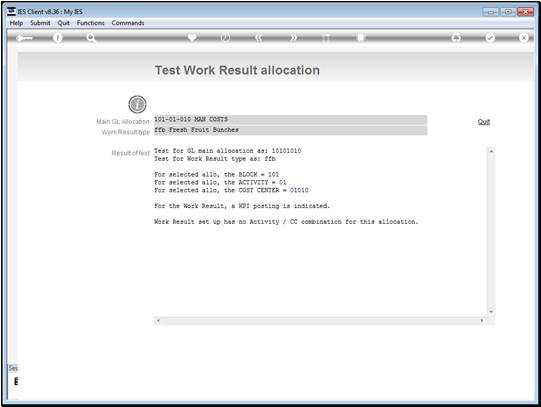

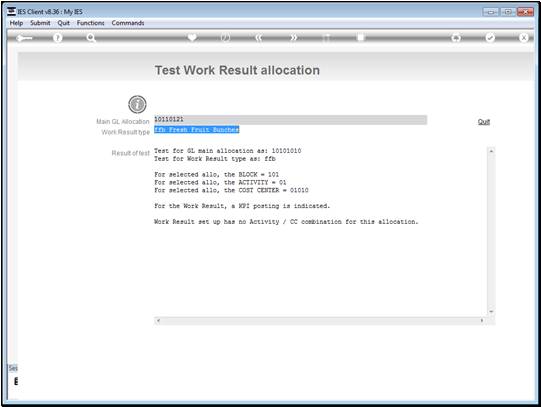

Slide notes: And we can see that for this example, the main allocation will not work, therefore the Work Result will be rejected at capture. The reason being because there is no Activity and Cost Center combination listed on the Work Result type that will translate to a valid allocation for the Work Result allocation, whether for Resource or KPI posting.

Slide 53

Slide notes:

Slide 54

Slide notes: Now we change to a different Account as the Allocation.

Slide 55

Slide notes:

Slide 56

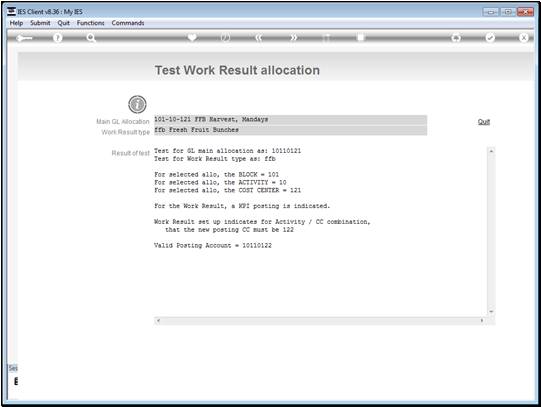

Slide notes: And this time we get a better result, because we can translate to a valid Account for posting of the Work Result total. In fact, when the Work Result type is captured, the system looks at the main allocation on the line, determines which Block and Activity and Cost Centre is implied, and then looks at the Accounts for the same Block and Activity, but with the new Cost Center, and there should only be 1 in a proper set up, and this is the Account that will be used.

Slide 57

Slide notes:

Slide 58

Slide notes:

Slide 59

Slide notes:

Slide 60

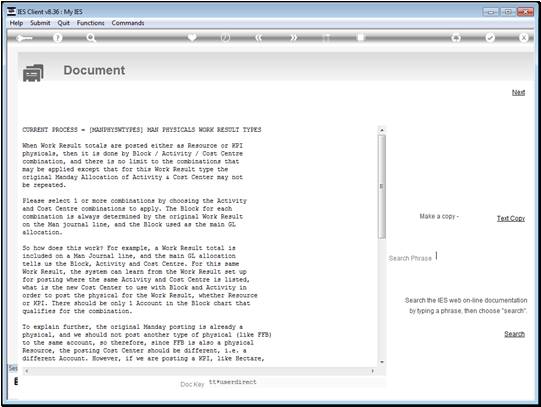

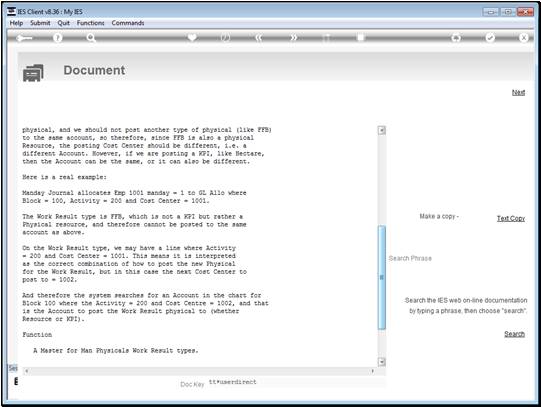

Slide notes: For the Implementor, it is worth reading the Help of this set up, since it provides additional explanation.

Slide 61

Slide notes:

Slide 62

Slide notes:

Slide 63

Slide notes:

Slide 64

Slide notes:

Slide 65

Slide notes:

Slide 66

Slide notes:

Slide 67

Slide notes:

Slide 68

Slide notes:

Slide 69

Slide notes:

Slide 70

Slide notes:

Slide 71

Slide notes: We also want to note that we cannot use the same Work Result type for standard Employees and for Borongan, so if we need both then we will make 2 Work Result types.

Slide 72

Slide notes: So, in our example for FFB type, we will remove the Borongan flag.

Slide 73

Slide notes:

Slide 74

Slide notes:

Slide 75

Slide notes:

Slide 76

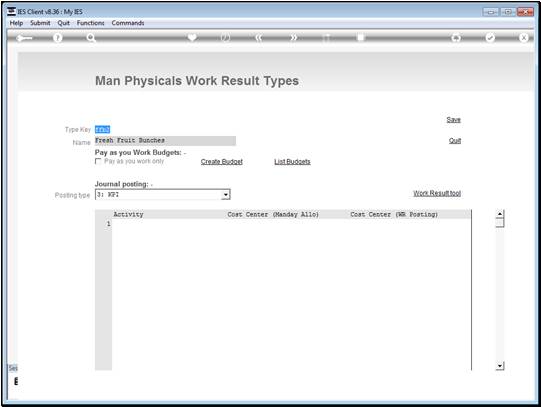

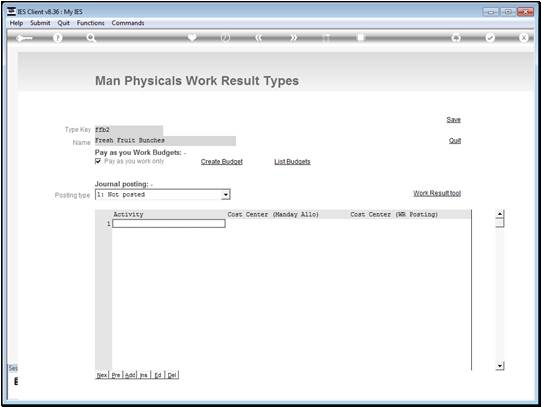

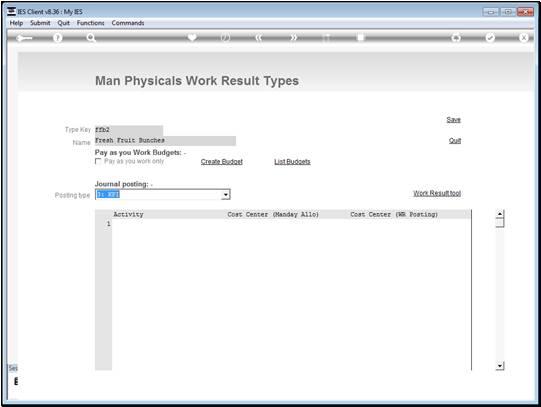

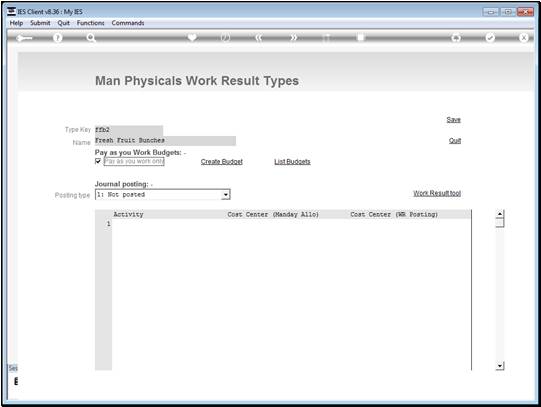

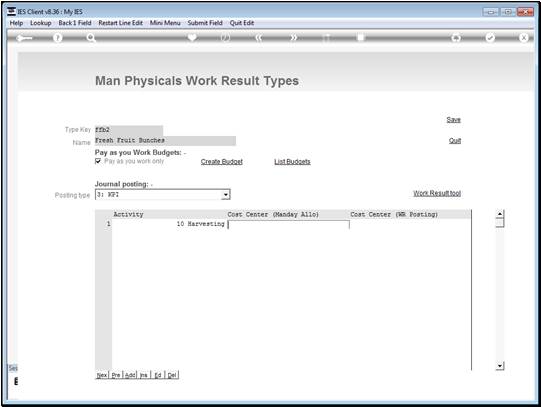

Slide notes: And then for FFB2, we can flag for Borongan if we in fact need a Borongan type, and then use the same set up for KPI or Resource posting as before on the FFB type.

Slide 77

Slide notes:

Slide 78

Slide notes:

Slide 79

Slide notes:

Slide 80

Slide notes:

Slide 81

Slide notes:

Slide 82

Slide notes:

Slide 83

Slide notes:

Slide 84

Slide notes: We can sum up by saying that the Man Work Result types can be captured as is when we do not require further measurements on them in our reporting system, but for those types where we want to measure Resource or KPI values in our Reports, like Harvesting, Planting, etc. we will expand the Work Result type definition to include automatic Resource or KPI posting of the Work Result totals.

Slide 85

Slide notes:
