Slide 1

Slide notes: In this tutorial we will show how to do a droplist selection box. First, we look at it in operation. This report is currently performed for a Current Month selection of January 2011.







Slide 2

Slide notes:







Slide 3

Slide notes:







Slide 4

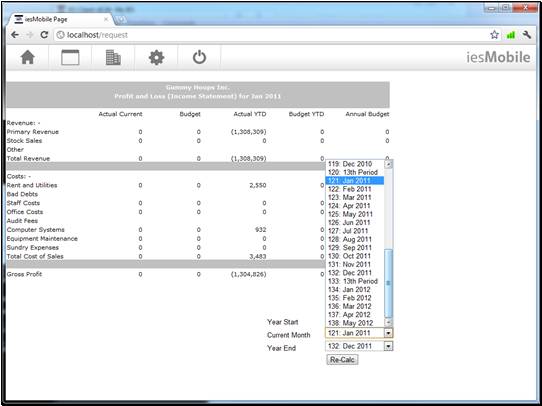

Slide notes: On the droplist, which clearly shows the different Period options available, we can select a different value for Current Month.







Slide 5

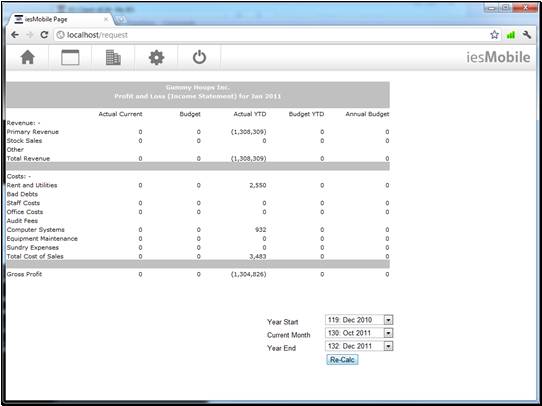

Slide notes: And when we choose to re-calculate the page, then the new selection of Current Month will be used.







Slide 6

Slide notes:







Slide 7

Slide notes:







Slide 8

Slide notes: The droplist is a lot more user friendly than a standard input box where the User may not know what the available or meaningful choices are.







Slide 9

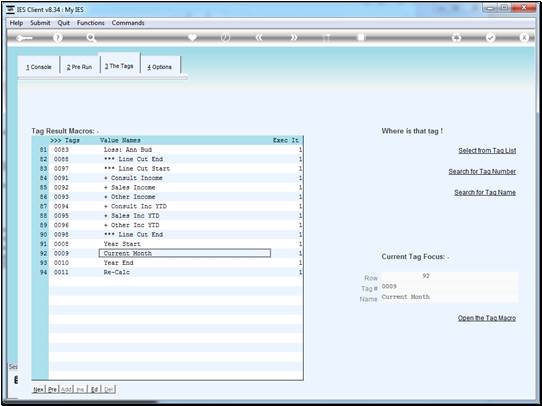

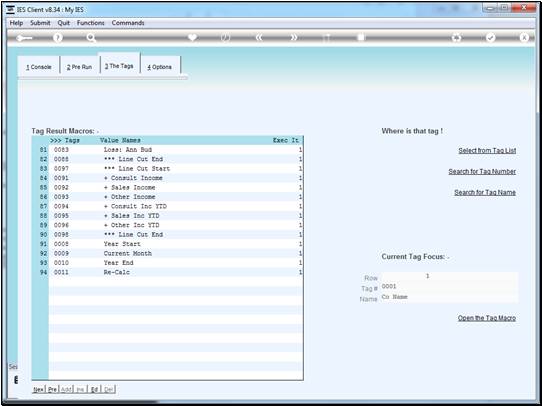

Slide notes: How do we do it? Let's have a look at the tag for the Current Month selection.







Slide 10

Slide notes:







Slide 11

Slide notes:







Slide 12

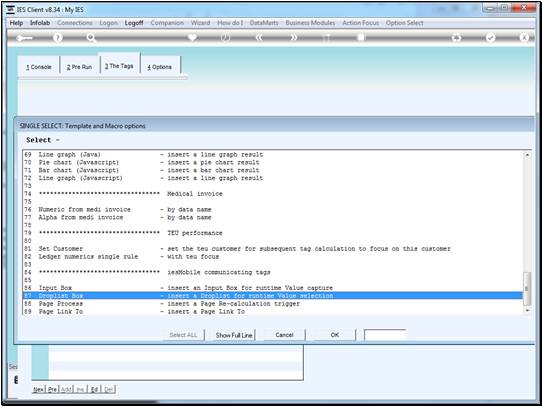

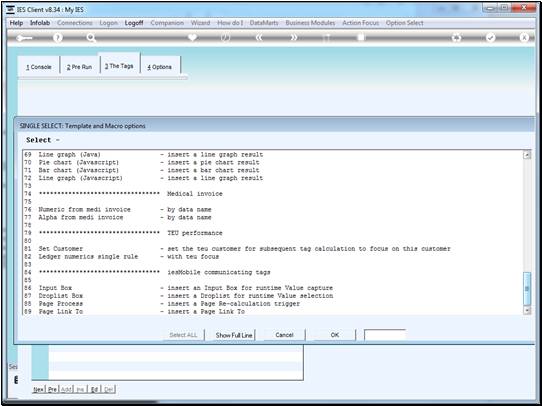

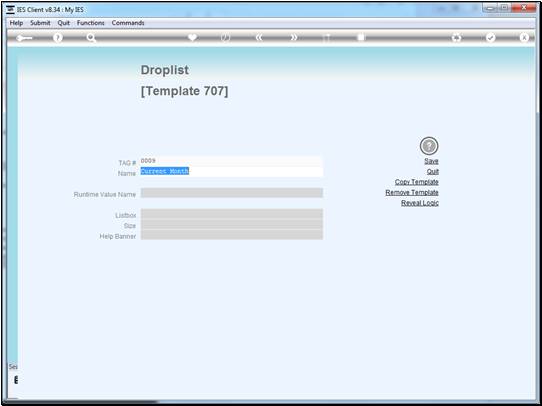

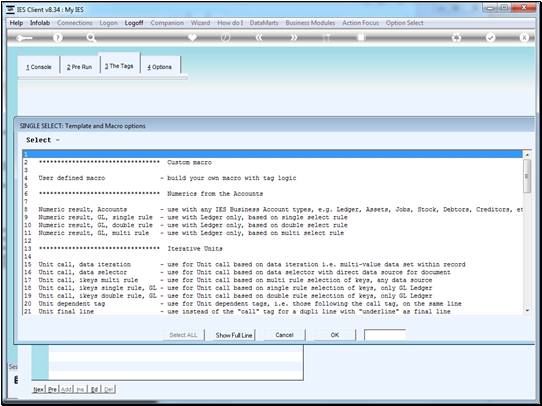

Slide notes: We choose the Template for a Droplist Box.







Slide 13

Slide notes:







Slide 14

Slide notes:







Slide 15

Slide notes:







Slide 16

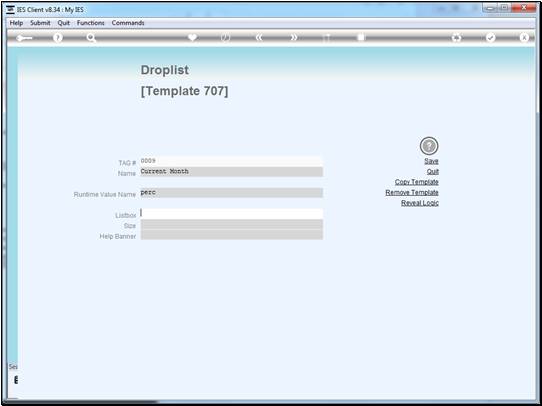

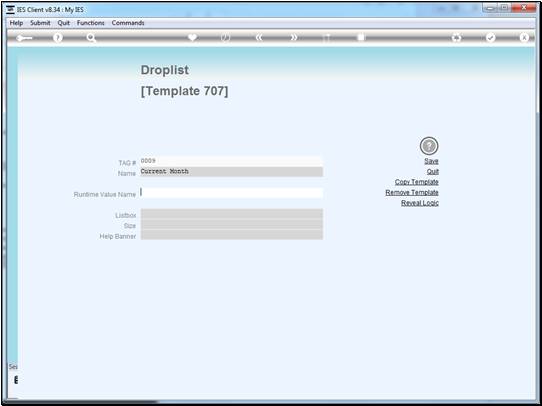

Slide notes: The runtime name MUST equate to the appropriate name on our runtime names list. In this case, for Current Period, we use the Name that we always use for Current Period.







Slide 17

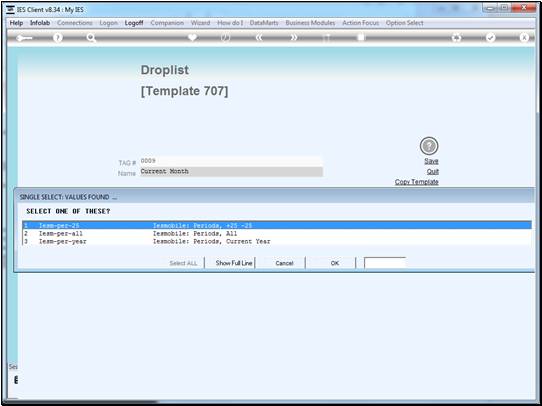

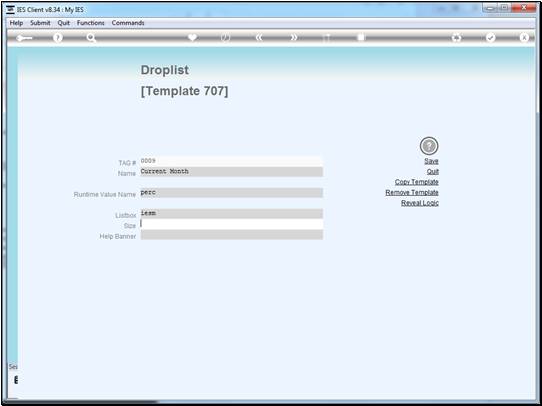

Slide notes: The listbox can be any listbox that we have provided in IES for any kind of value selection, but for Periods we have 3 special Listbox options.







Slide 18

Slide notes:







Slide 19

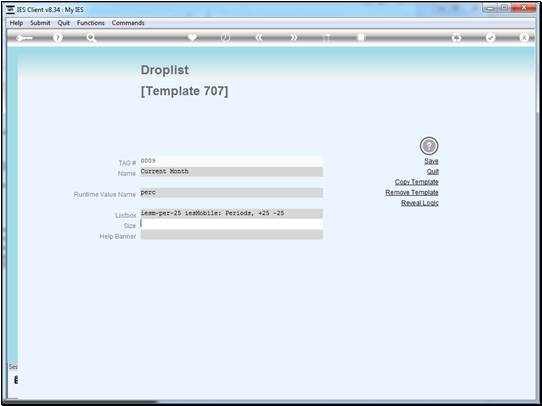

Slide notes: The one that we will choose, will offer all Current Year Periods, and additionally the 25 Periods immediately before and after the Current Year. This is the most commonly used option, but we can also choose the 'all Periods' option or the 'Current Year only' option.







Slide 20

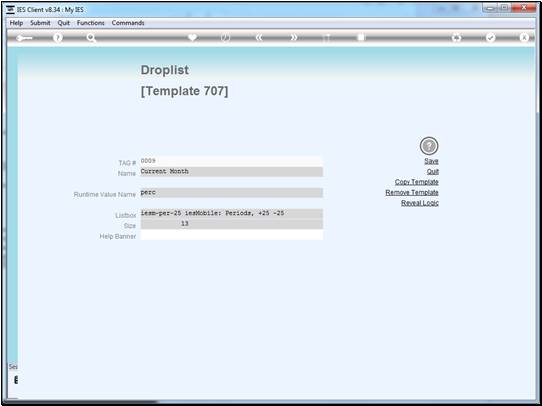

Slide notes: The size for the droplist box is selected as the number of characters wide that we want it to be.







Slide 21

Slide notes:







Slide 22

Slide notes:







Slide 23

Slide notes: And it's just as easy as that.







Slide 24

Slide notes:







Slide 25

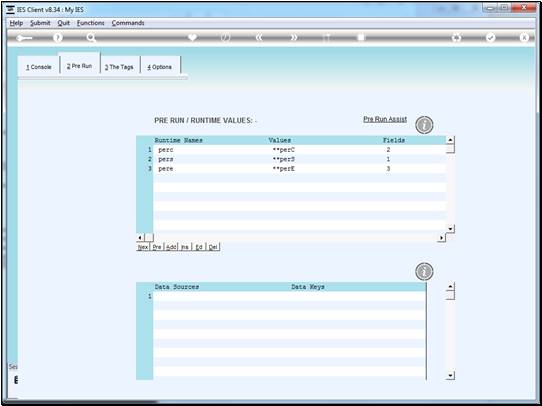

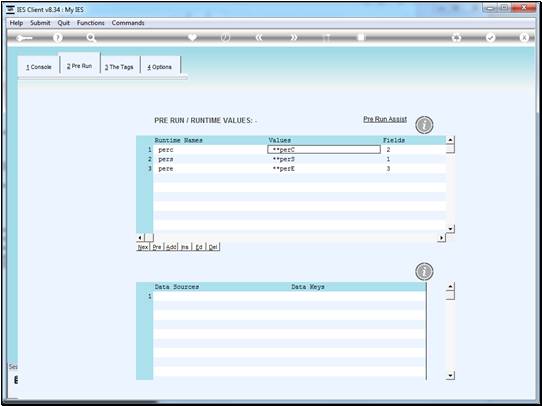

Slide notes: The important point is that whatever runtime Name we wish to apply for the droplist box, it must be on the list of Runtime Names for this page.







Slide 26

Slide notes:







Slide 27

Slide notes:







Slide 28

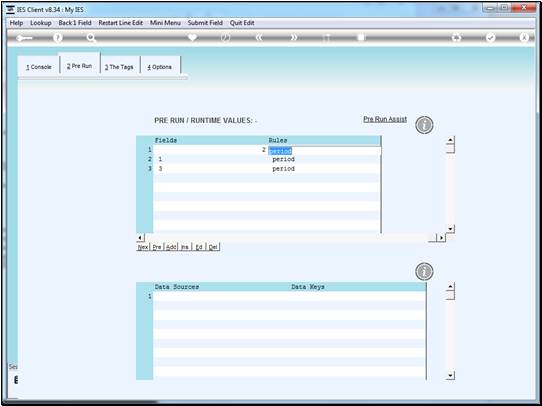

Slide notes: And, depending on the kind of value offered for selection, we may need rules. In the case of using Periods on a droplist, we will always need a rule called "period".







Slide 29

Slide notes:







Slide 30

Slide notes:







Slide 31

Slide notes:







Slide 32

Slide notes:







Slide 33

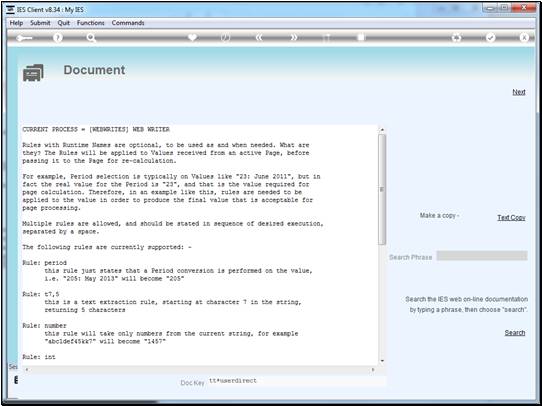

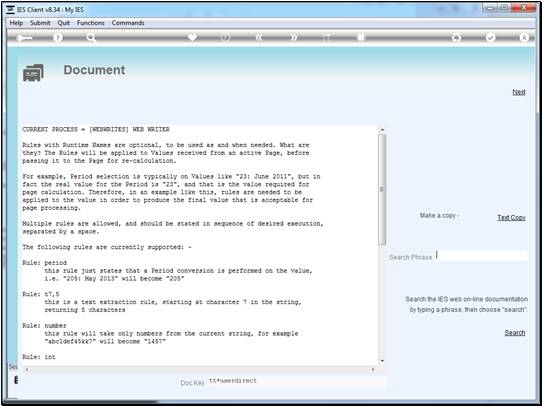

Slide notes: On the Help we can see why, and it is because we show the Period options to the User in a friendly manner that includes the name of the Period, but for the page calculation only the leading digits that imply the Period Number should be provided.







Slide 34

Slide notes:







Slide 35

Slide notes:
